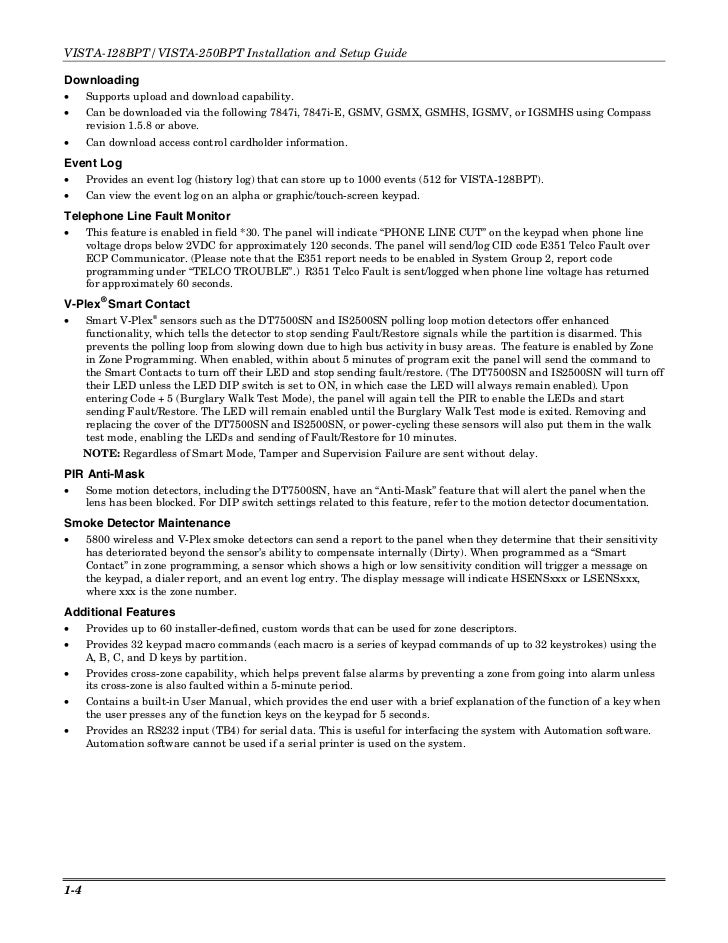

The 6160RF can be surface mounted directly to walls, or to a single- or double-gang electrical box. Removing the keypad’s case back provides access to the terminal blocks. The 6160RF has terminal blocks for connection to power and data wires. Connect the power and data wires from the control panel to the terminals on the 6160RF as indicated in Figure 2 and Table 1. Mount the case back to a wall or to an electrical box using the 25mm-long self-tapping screws supplied (mollies for drywall are not supplied). If desired, wires may be strain-relieved to the wire tie point on the inside of the case back with a tie wrap (not supplied).
The breakouts must be punched out using a screwdriver before mounting the case back. If surface wiring is being used, wiring may be routed through the top or the bottom left-side breakout in the case back. (see the control panel’s instructions for proper run lengths.) a. The 6160RF must be at least 10 ft from the control panel to ensure proper operation of the RF receiver.
INSTALLING THE 6160RF Locate the 6160RF in an area and at a height where it is convenient for user operation. Pass the wiring from the control panel through
